Brand Name : Bourns
Model Number : 3590S-2-103L
Place of Origin : MEXICO
MOQ : 1PCS
Price : $7/PCS
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 5000 PCS
Delivery Time : STOCK
Packaging Details : 10/Box
Description : Bourns 3590S-2-103L Potentiometer 10K Ohms±5% LIN±0.25% Wirewound Potentiometers
Stock : 5000 PCS
Shipping Method : LCL, AIR, FCL, Express
Category : Precision Potentiometers
Mfr : Bourns
Series : 3590S-2
Package : Bulk
Product Status : Active
Resistance (Ohms) : 10K
Tolerance : ±5%
Power (Watts) : 2W
Built in Switch : None
Number of Turns : 10
Taper : Linear ±0.25%
Number of Gangs : 1
Adjustment Type : User Defined
Temperature Coefficient : ±50ppm/°C
Rotation : 3600°
Resistive Material : Wirewound
Termination Style : Solder Lug
Actuator Type : Rotary Metal
Actuator Length : 20.63mm
Actuator Diameter : 6.35mm
Bushing Thread : 3/8-32UNEF
Mounting Type : Panel Mount
Size - Body : Φ22×19mm
IP Rating : IP40

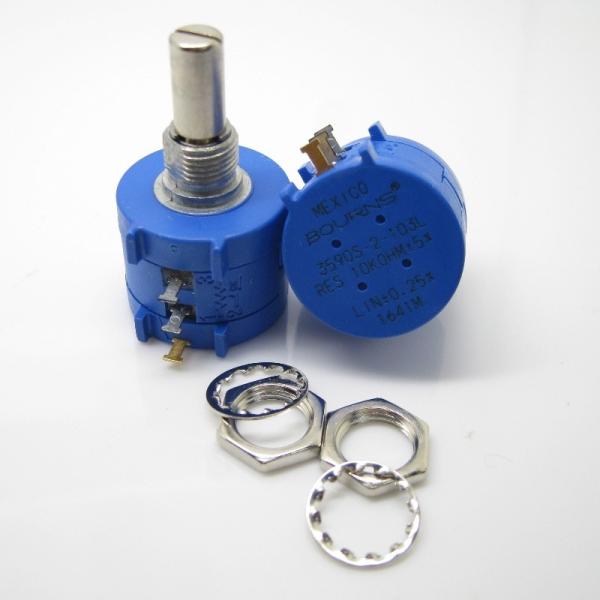

3590S-2-103L Bourns 10K Ohms±5% LIN±0.25% 2W 10-TURNS Wirewound Potentiometers
3590S-2 Bourns 100-100K Ohms±5% LIN±0.25% 2W 10-TURNS Wirewound Potentiometers
Part number | Resistance (Ω) | Digital knob |
3590S-2-101L | 100 | H-22-6A |
3590S-2-201L | 200 | |
3590S-2-501L | 500 | |
3590S-2-102L | 1K | |
3590S-2-202L | 2K | |
3590S-2-502L | 5K | |
3590S-2-103L | 10K | |
3590S-2-203L | 20K | |
3590S-2-503L | 50K | |
3590S-2-104L | 100K |
![]() |
3590S-2-103L Images |
